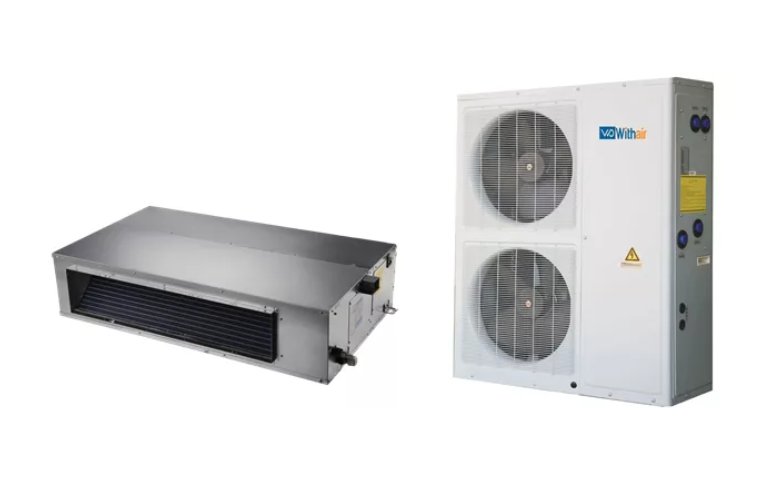

Ductable AC Systems
Centralized Cooling for Large Commercial Spaces
System Overview
Ductable air conditioning systems provide centralized cooling through a network of concealed ducts. A single outdoor unit connects to indoor air handling units that distribute conditioned air via ductwork to multiple rooms or zones. These systems are ideal for offices, showrooms, hospitals, and residential complexes where aesthetics and uniform temperature control are important. The ductwork is concealed above false ceilings, leaving only elegant air diffusers visible. Available with inverter technology for energy efficiency and R32 refrigerant for environmental compliance.
Key Features
Inverter compressor for energy efficiency
Concealed ductwork - only grilles visible
Zoned temperature control with individual thermostats
High cooling capacity - 1.5 TR to 4 TR
Fresh air intake option for ventilation
5 fan speeds for airflow selection
External static pressure up to 120 Pa
Compact outdoor unit - only 48 kg for 4-5 HP
Self-clean operation
Auto-restart function for power failure
Key Benefits
- Consistent temperature throughout the building
- No visible indoor units - clean ceiling appearance
- Individual zone control saves energy
- Better air distribution and circulation
- Lower installation cost per square foot for large areas
- Easy maintenance with centralized service points
- Energy efficient operation with inverter technology
Technical Specifications
Capacity Range: 1.5 TR (5.3 kW) to 4 TR (14.1 kW)
Power Supply: 1-phase 230V / 3-phase 400V, 50Hz
ISEER Rating: Up to 4.42 (4-5 Star)
External Static Pressure: Up to 120 Pa
Refrigerant: R32
Pipe Length: Maximum 30-50 meters
Ideal Applications
Corporate Offices & IT Parks
Shopping Malls & Showrooms
Hospitals & Healthcare
Hotels & Banquet Halls
Educational Institutions
Residential Apartments
